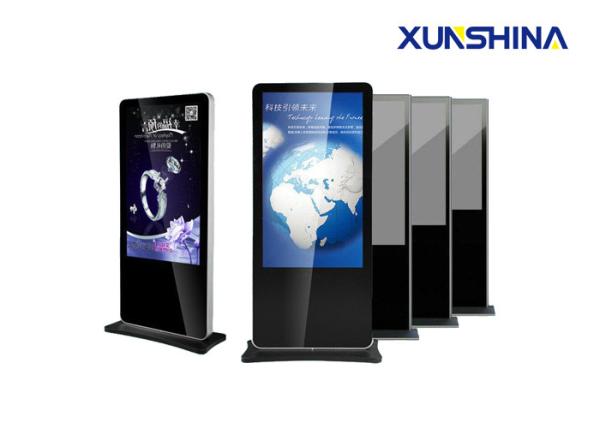

Floor Standing Touch Screen 55" Advertising Digital Signage in Retail
Description
1. Real time management and controlling, browser, breakpoint upload download, multi-mode upload supported.
2. Updating programs (video, pictures. texts,PPT etc.) through the internet supported.
3. Auto power on/off, electronic clock & date supported.
4. Split Screen and fixed templated display setting supported.
5. Setting IP address, working time and working day supported.
6. 1080P full HD programs display supported.
7. Support multi-touch, resistance, capacitive and infrared touch screen, with touch screen calibration function;
8. Support remote control;
9. Support USB mouse/keyboard input;
Specifications
| LCD Specifications |
| Model No. | XS-G55L | Panel | LG panel |
| Size | 55inch | Body Dimension | 1922(H)x795(W)x40(D)mm |
| Body Material | Tempered glass+AL | Frame Surface | Tempered glass |
| Display Color | 16.7M(8-bit) | Response Time | 6ms |
| Brightness | 350cd/m2 | Viewing Angle | 89/89/89/89/(Min)(cR≥10) |
| Display Ratio | 16:9 | Display Area | 1210x681mm(V*H) |
| Backlight Life | 50000H | Backlight Type | LED |
| Scan Frequency | 60HZ | Resolution | 1920×1080 |
| Power | 200W | Contrast | 3000:1(Typ) |
| Voltage | 110-240V ( AC) | Net Weight | 60KG |
| |
| Processor | RK3368 octa-core Cortex-A53 CPU 1.5GHz |
| RAM | 2GB DDR3 |
| ROM | 8GB EMMC |
| Memory Expansion | Max support 32GB SD card |
| Bluetooth | Support Bluetooth 4.0 module |
| Decoding resolution | Max 2160P |
| Network | Ethernet, WiFi, Support 3G/4G wireless extension device |
| OS | Android 5.1.1 |
| Language | Chinese simplified, Chinese traditional, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech, etc. |
| Supported Format |
| Video format | RMVB,FLV,MPEG1/2/4,AVI,DIVX,XDIV, WMV9,H.264,H.265,VC-1,MOV,MKV,MP4,TS,M2T,VOB (4K@60fps H.265 decoder,4K@30fps H.264 Video decoder ) |
| Audio format | MP3,WMA,WAV,,AC3,FLAC |
| Image format | BMP/PNG/GIF/JPEG(4800*4800). |
| Text reading | Support TXT, PDF, HTML, HTM |
| USB2.0 | 4xUSB HOST, 1x USB OTG/HOTG |
| HDMI output | 1x HDMI support HDMI2.0 4K@60Hz output |
| LAN | 10M/100M Ethernet Auto-adaptive (1x RJ45) |
| Timer switch | Support |
| LVDS output | 1, can directly drive 50/60Hz LCD screen |
| RTC | Support |
| Audio video output | L/R audio output (2x8Ω/10W speaker) |
| SD card | 1x SD |
| Remote control | Support IR remote control |
| System upgrade | Support USB, SD upgrade |
| Power |
| Power supply | DC 12V |
| Power consumption | Normal operating <4.5W, standby <0.3W |
| Working Environment |
| Working temperature | 0℃～60℃ |
| Working humidity | ≤75％ |
| Storage temperature | recommended 15℃～45℃ |
| Touch function (optional) |
| Touch screen | Touch Points | 10 points IR touch |
| Drive Method | HID drive free |
| Response Time | First point 4ms, continuous response time 2ms |
| Writing Surface | 4mm tempered glass |
| Input Method | Finger touch or other opaque medium |
| Touch Accuracy | ±1.5mm |
| Touch Times | More than 60 million times single-touch |
Applications
Business Organizations:Supermarkets, large-scale shopping malls, exclusive agencies, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacies.
Public Places: Subways, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR markets, lottery centers.
